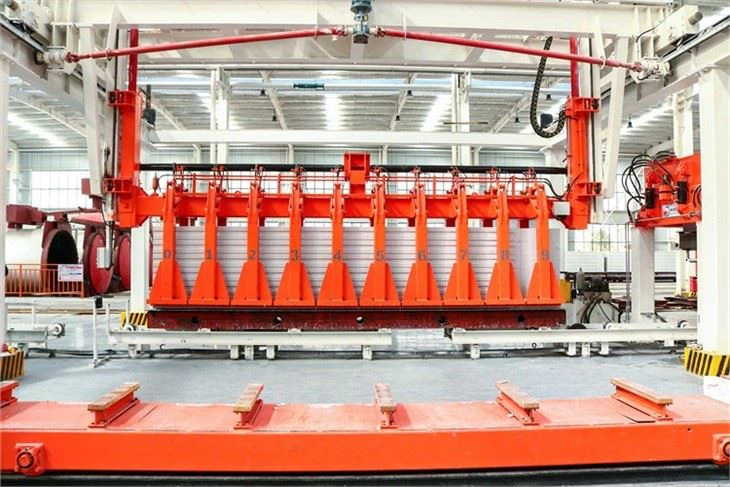

AAC Block Handing Crane

Equipment use

The two blank bodies are divided into a single stack of the specified size, and placed on the tray after rotation, so as to facilitate packing and firm transportation.

Technical specification（1）

Dimensions: 4355×2840×7015mm;

Main profiles: 350×175H steel, 300×200×8 rectangular pipe, 300×200×8 rectangular pipe, 200×200×8 square pipe, 150×150×8 square pipe, 120×120 ×6 square pipe, 14mm, 16mm, 20mm steel plate

Technical specification（2）

1. Walking reducer: to be determined, power 7.5kW, walking speed 0-50m/min;

2. Power of hydraulic station: (servo motor) 11kW.

Technical specification（3）

1. The driving adopts pinion and rack walking mode;

2. Lifting mode: hydraulic lifting;

3. Same step: rack and pinion type;

4. Hydraulic station adopts servo hydraulic system;

5. Rotary mining hydraulic motor.
